UNIO 96

UNIO 96 Extraction & PCR Setup System

IVD CE

UNIO 96 Extraction & PCR Setup System is designed and developed for automated extraction of DNA/RNA from different sources including body fluids originating from different biological sample materials (serum, blood, plasma, nasopharyngeal swabs, oropharyngeal swabs) and also enables the PCR setup to be performed after the automated extraction of nucleic acids.

Contact Form

Fill out this field
Please enter a valid email address.
Fill out this field
18 + 10 = ?
Please complete the CAPTCHA verification.
Enter the equation result to proceed
Select an option

Features

Enhanced Safety

Advanced UV Decontamination – An integrated UV lamp sterilizes the entire working area ensuring effective decontamination ​

Sealed & Controlled Processing – The system prevents cross-contamination by maintaining a controlled, enclosed environment​

Advanced Pipetting Monitoring

Warns if tips are clogged or if not enough sample is drawn for example due to gel or blood clot​

Smart monitoring with CO-RE pipette tips

Optional HEPA Filter

Can be retrofitted with a HEPA (High Efficiency Particulate Air) Filter Hood for air filtration which creates a laminar flow of filtered air from the top of the instrument to the deck surface. ​

LIMS Compatible

Effectively manage samples and associated data with Laboratory Information Management System (LIMS)​

Features

96-Sample Capacity

Automated extraction and PCR Setup system for up to 96 samples​

Enhanced Safety

Advanced UV Decontamination – An integrated UV lamp sterilizes the entire working area ensuring effective decontamination ​

Sealed & Controlled Processing – The system prevents cross-contamination by maintaining a controlled, enclosed environment​

Liquid Level Detection

Pipettes with liquid-level sensing for checking reagent volumes, pipetting samples, preparing the extraction master mix, and performing PCR Setup​​

Advanced Pipetting Monitoring

Warns if tips are clogged or if not enough sample is drawn for example due to gel or blood clot​

Smart monitoring with CO-RE pipette tips

Optional HEPA Filter

Can be retrofitted with a HEPA (High Efficiency Particulate Air) Filter Hood for air filtration which creates a laminar flow of filtered air from the top of the instrument to the deck surface. ​

Onboard Cooling and Heating Module

Integrated cooling and heating module to provide the best storage conditions ​

LIMS Compatible

Effectively manage samples and associated data with Laboratory Information Management System (LIMS)​

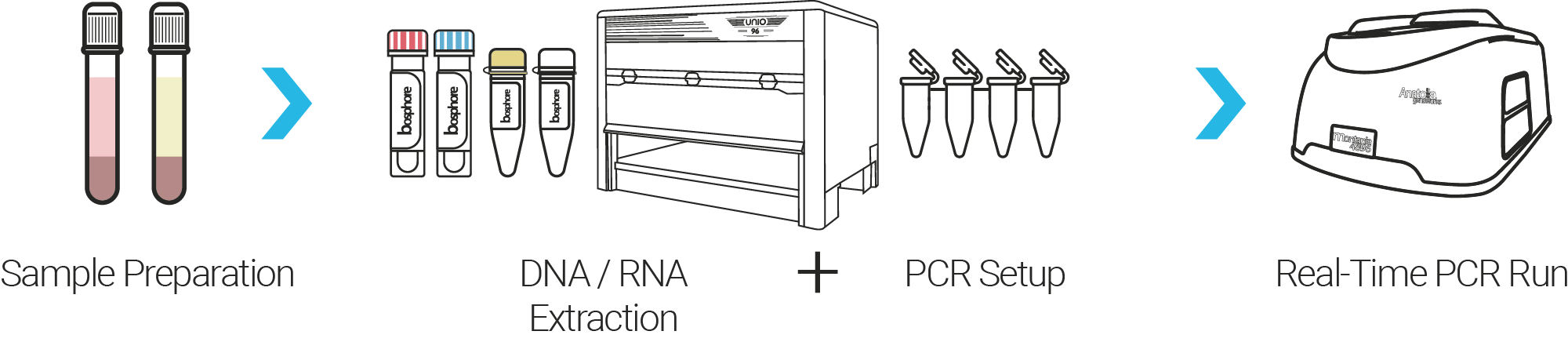

Workflow

Technical Details

Extraction Method​

Automated Extraction with Silica-coated Magnetic Beads / Rapid Extraction Method without​ Magnetic Beads​
Capacity 1-96 Sample
Sample Volume      200/400 µl
Elution Volume      80/150/200/400 µl
Efficiency Up to 10 µg/200µl
Heater Block
UV Lamp
Size and Weight     D: 795 x W: 1124 x H: 903 mm – 150 kg
