Montania 4896 Real-Time PCR Instrument

IVD CE

Montania 4896 Real-Time PCR System is a Real-Time PCR instrument designed for in vitro clinical diagnostics and general laboratory applications. It enables fast and accurate qualitative/quantitative detection of nucleic acids from various biological samples (blood, body fluids, etc.) and melting curve/genotyping analysis.

Features

Precision & High Sensitivity

Low inter-instrument and inter-well variation ensures reproducible results​

Fiber optic translation of emission signals and a PMT module for highly sensitive photon energy measurements​

Exceptional thermal cycle accuracy & uniform temperature distribution

User-Friendly & Automated Software

Automated Data Analysis: Draws standard curves, calculates initial concentration, and generates reports​

Flexible Workflow Optimization: Allows both manual and automated optimization​

Simple & Intuitive Interface: Easy-to-use menus to minimize errors in assay setup

Reliable & Secure System

Error-free Diagnostics with automated setup​

Optional Barcode Reader for enhanced sample traceability

Features

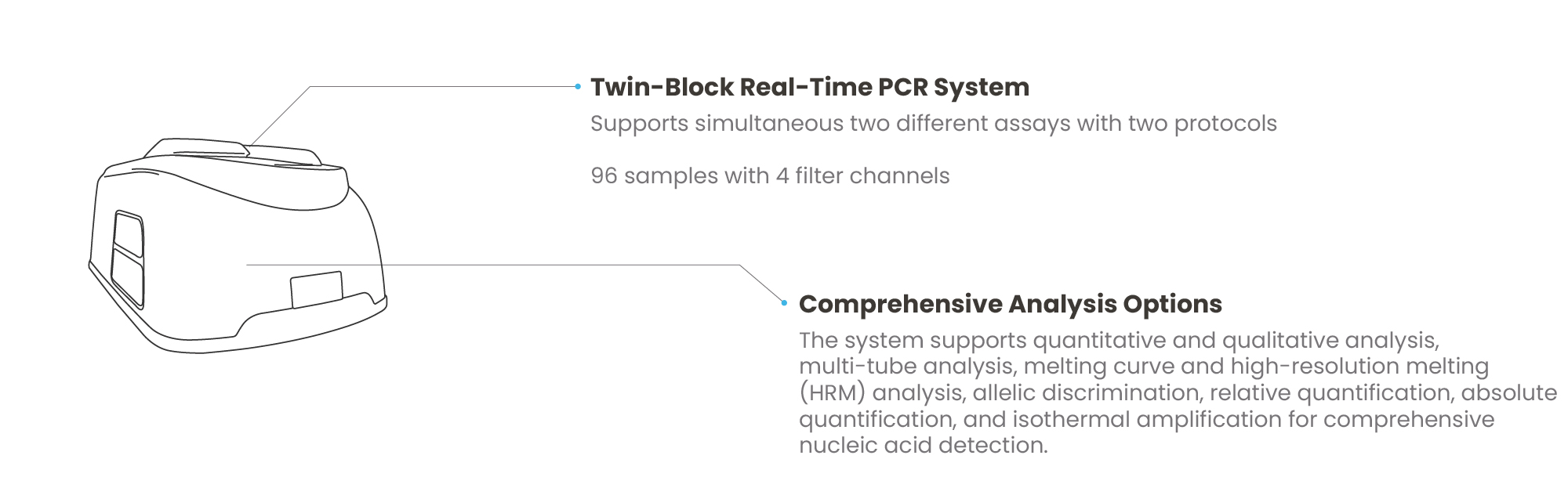

Twin-Block Real-Time PCR System

Supports simultaneous two different assays with two protocols​

96 samples with 4 filter channels

Comprehensive Analysis Options

The system supports quantitative and qualitative analysis, multi-tube analysis, melting curve and high-resolution melting (HRM) analysis, allelic discrimination, relative quantification, absolute quantification, and isothermal amplification for comprehensive nucleic acid detection.​

Precision & High Sensitivity

Low inter-instrument and inter-well variation ensures reproducible results​

Fiber optic translation of emission signals and a PMT module for highly sensitive photon energy measurements​

Exceptional thermal cycle accuracy & uniform temperature distribution

User-Friendly & Automated Software

Automated Data Analysis: Draws standard curves, calculates initial concentration, and generates reports​

Flexible Workflow Optimization: Allows both manual and automated optimization​

Simple & Intuitive Interface: Easy-to-use menus to minimize errors in assay setup

Reliable & Secure System

Error-free Diagnostics with automated setup​

Optional Barcode Reader for enhanced sample traceability

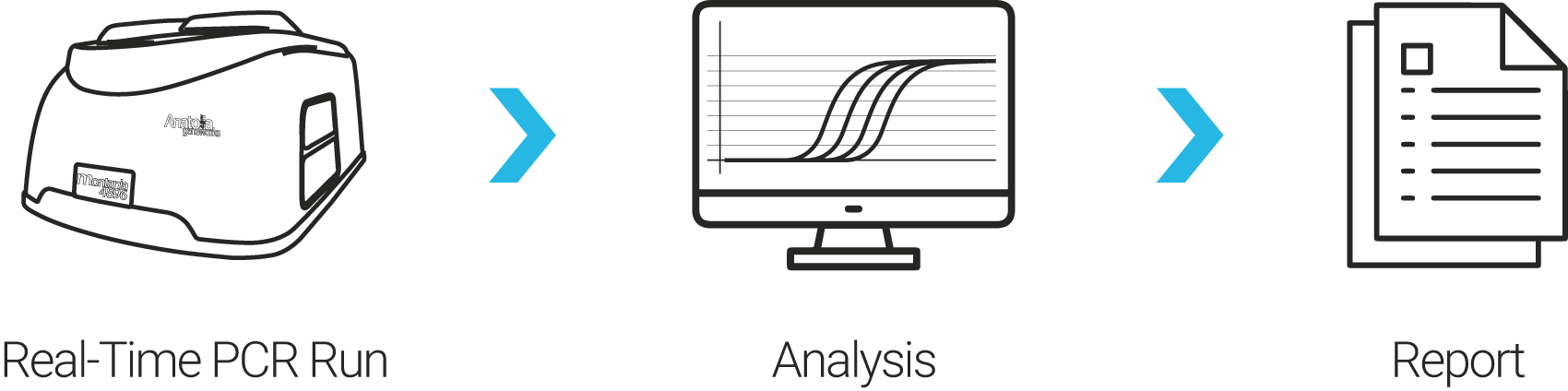

Workflow

Technical Details

Sample Capacity 96 (Twin 48-well independent blocks)
Light Source LED
Temperature Range 4-99ºC
Max Ramp Rate 4.5ºC/sec
Temperature Accuracy +/- 0.1ºC
Temperature Uniformity +/- 0.1ºC
Sample Volume 15-50 µl
Filter Pairs/Wavelengths  4 (470/510 – 530/565 – 585/620 – 630/665 nm)
Dyes FAM/SYBR Green, VIC/HEX/JOE/TET, ROX/Texas Red, Cy5
Size and Weight D: 520 x W: 380 x H: 250 mm – 18 kg
