UNIO M8/M16/M32

UNIO M8/M16/M32 Extraction Systems

IVD CE

UNIO M8/M16/M32 Extraction Systems are automated laboratory instruments for nucleic acid extraction (DNA and RNA) from various biological and food samples based on silica-coated magnetic beads for use in downstream PCR applications, for diagnostic and veterinary purposes.

The systems use ready-to-use and prefilled kits for nucleic acid extraction, which contain all the necessary reagents for the extraction process. These prefilled kits allow working with different samples like blood, serum, plasma, swabs, sputum, BAL, cell culture, cerebrospinal fluid, and food. Extraction can be performed from various pathogens, such as viruses and bacteria.

Features

Enhanced Safety

Advanced UV Decontamination – An integrated UV lamp sterilizes the entire working area ensuring effective decontamination ​

Sealed & Controlled Processing – The system prevents cross-contamination by maintaining a controlled, enclosed environment​

Available Extraction Kits

Specifically designed prefilled kits for automatic extraction, like UNIO M8 Food DNA Extraction Kit, UNIO M16 Food DNA Extraction Kit, UNIO M32 Viral DNA/RNA Extraction Kit, UNIO M32 Whole Blood Genomic DNA Extraction Kit, are suitable for various biological samples

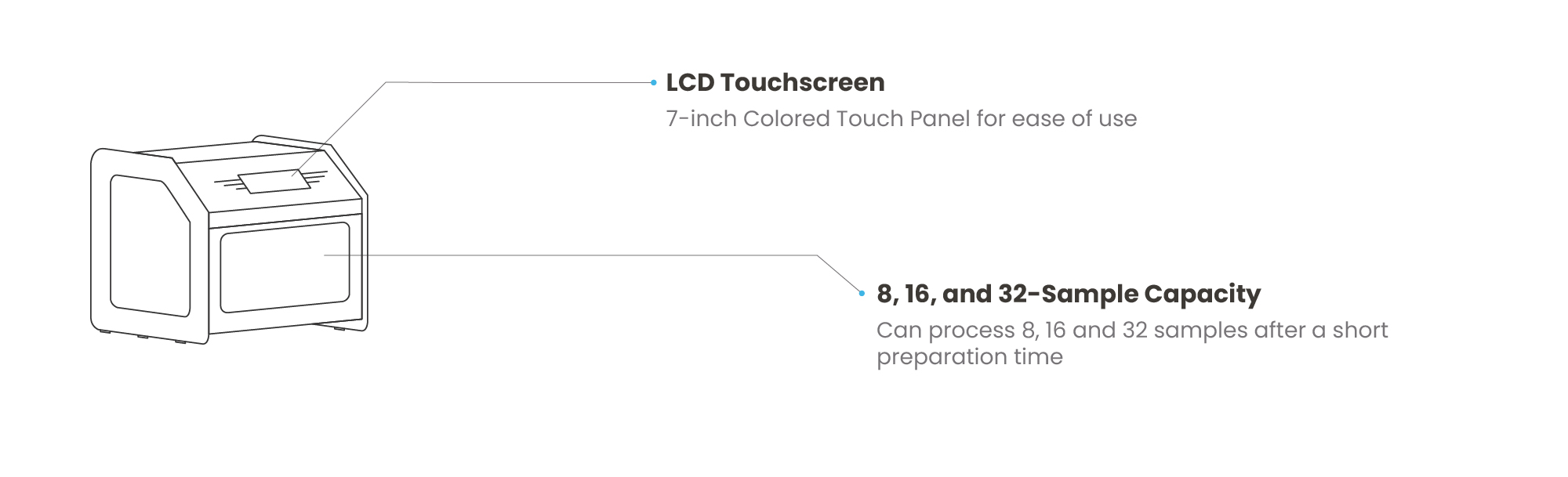

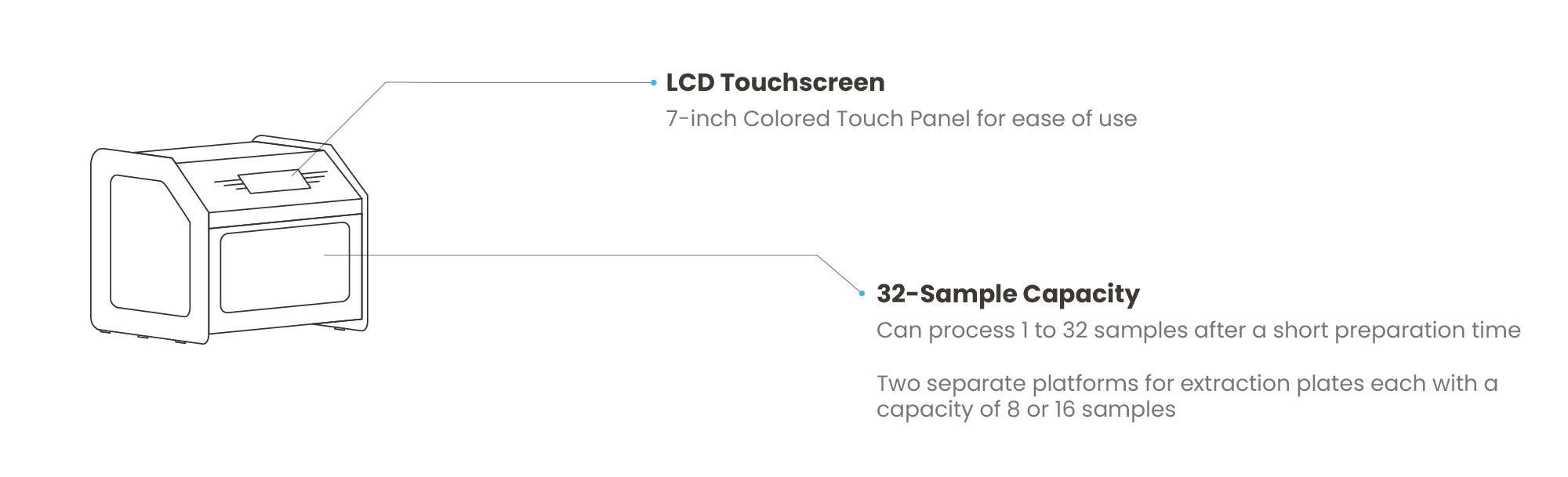

Features

8, 16, and 32-Sample Capacity

Can process 8,16 and 32 samples after a short preparation time

Enhanced Safety

Advanced UV Decontamination – An integrated UV lamp sterilizes the entire working area ensuring effective decontamination ​

Sealed & Controlled Processing – The system prevents cross-contamination by maintaining a controlled, enclosed environment​

LCD Touchscreen

7-inch Colored Touch Panel for ease of use​

Available Extraction Kits

Specifically designed prefilled kits for automatic extraction, like UNIO M8 Food DNA Extraction Kit, UNIO M16 Food DNA Extraction Kit, UNIO M32 Viral DNA/RNA Extraction Kit, UNIO M32 Whole Blood Genomic DNA Extraction Kit, are suitable for various biological samples

Workflow

Technical Details

Method Automated extraction with silica-coated magnetic beads  Automated extraction with silica-coated magnetic beads  Automated extraction with silica-coated magnetic beads
Capacity 1-8 samples 1-16 samples 1-32 samples
Sample Volume 2000 µl 1000 μL 100/200 μL
Elution Volume 300-400 µl 300-400 μL 100 μL
Heating Block
UV Light
Size and Weight D: 310 × W: 385 × H: 369 mm – 18 kg D: 310 × W: 385 × H: 369 mm – 18 kg D: 310 × W: 385 × H: 369 mm – 18 kg



Technical Details

Method Automated extraction with silica-coated magnetic beads
Capacity 1-8 samples
Sample Volume 2000 μL
Elution Volume 300-400 μL
Heating Block
UV Light
Size and Weight D: 310 × W: 385 × H: 369 mm – 18 kg



Method Automated extraction with silica-coated magnetic beads
Capacity 1-16 samples
Sample Volume 1000 μL
Elution Volume 300-400 μL
Heating Block
UV Light
Size and Weight D: 310 × W: 385 × H: 369 mm – 18 kg



Method Automated extraction with silica-coated magnetic beads
Capacity 1-32 samples
Sample Volume 100/200 μL
Elution Volume 100 μL
Heating Block
UV Light
Size and Weight D: 310 × W: 385 × H: 369 mm – 18 kg
