UNIO B48 Extraction System is a robotic laboratory instrument designed for the automatic extraction of DNA and RNA from biological samples using magnetic particles.
UNIO B48
The UNIO B48 Isolation System enables fast and efficient nucleic acid isolation with high purity. Using ready-made protocols, robotic pipettes and sterile, automation-filled cartridge systems, the instrument thus achieves contamination-free nucleic acid extraction.
UNIO B48 consists of two separate blocks, each with an independent 24-sample capacity, and can easily process samples ranging from 1 to 48 after a short preparation step. The samples can be human biological samples such as blood, serum, plasma or food and feed products that are tested in food control laboratories. In addition to the working system that completely prevents cross-contamination, safe working conditions are also created with UV lamps that can be activated before and after work.

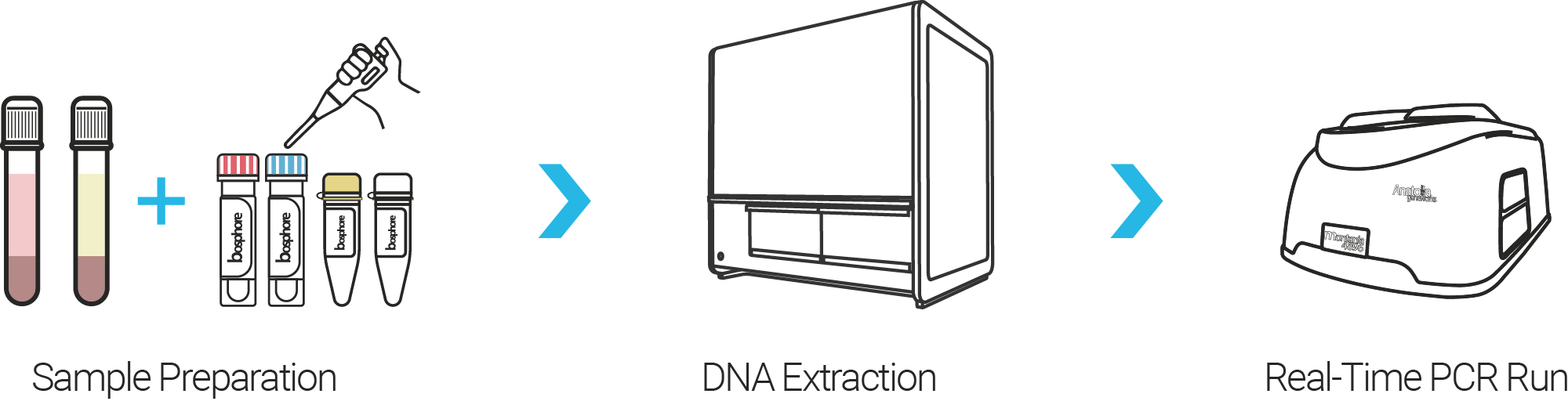

Workflow

Technical Details
Method | Automated Isolation with Magnetic Beads |
Capacity | 1-48 samples |
Sample Volume | 100/200/400/600 μl |
Elution Volume | 60/100/150/200 μl |
Heater Block | |
UV Lamp | |
Size and Weight | 660mm x 920mm x 920mm – 180kg |
